What Faucet Cartridge Do I Need: Identify & Replace

Understanding what faucet cartridge you need

If you're tackling a leaky sink or a stiff handle, the question "what faucet cartridge do i need" is a common starting point. The cartridge is the small, replaceable component inside the valve that controls water flow and temperature. Different faucet brands use different cartridge styles, shapes, and sizes, so accurate identification saves time and money. According to Faucet Fix Guide, begin by locating the faucet brand and model, then inspect any markings on the cartridge itself. If markings are faint, photograph the area and compare later. Gather installation details and, importantly, measure the cartridge footprint to guide your search. This upfront step reduces the risk of buying the wrong part and helps you plan for necessary tools and seals before you start the repair.

Brand differences and why they matter

Faucet brands generally fit within a few cartridge families, but the fit isn’t universal. Moen, Delta, Pfister (Price Pfister), American Standard, and others often use ceramic disk or cartridge-type valves that vary in diameter, height, and spline pattern. Ceramic disks wear differently from traditional cartridges, so recognizing the type helps you pick a replacement with the right seal, stem height, and water-port alignment. When in doubt, verify the exact model or pull the cartridge from the valve to compare features side-by-side. This brand-aware approach minimizes mismatches during purchase and installation.

Reading markings and identifying the stem

Cartridge markings can include brand initials, model numbers, or manufacturing codes. The stem shape—round, square, or splined—also serves as a quick ID cue. Remove the handle assembly carefully to expose the cartridge, then inspect for engravings, stamped numbers, or color-coded rings. Note the number of splines, O-ring placement, and any notch patterns. If a mark is hard to read, use a flashlight and a magnifier, then capture a photo for later cross-referencing with official specifications.

Measuring size accurately for a proper fit

Accurate measurements reduce returns and wrong purchases. Measure the cartridge’s total height, maximum diameter, and the gap between end seals. Count the spline or notch segments on the stem, and note the diameter at the widest point where it contacts the valve body. Record the seal material (O-rings vs. ceramic discs) as well, since this affects compatibility with replacement parts. When you match a replacement, ensure the footprint aligns with the valve housing and that the new cartridge seats evenly without rocking.

When universal cartridges might work—and when they won’t

Some retailers offer universal or cross-brand cartridges, but compatibility depends on valve type and cartridge footprint. If your measurements align with a universal option, verify that the replacement matches the spline count and stem orientation. If not, stick to brand-specific cartridges or approved OEM equivalents. Always check the faucet’s compatibility notes, product compatibility charts, and the return policy in case the part doesn’t fit after inspection.

Planning your replacement: warranties, returns, and tools

Before buying, check the faucet warranty for cartridge coverage. Some manufacturers require professional installation for warranty validity, while others offer customer support if you’re unsure about fit. Save the original packaging and take photos of the installation before disassembly in case you need to return a component. Assemble a basic toolkit: screwdriver set, adjustable wrench, needle-nose pliers, a towel or bucket, and optional plumber’s grease for new O-rings. A well-planned replacement reduces surprises and speeds up the project.

A practical approach to replacement (high-level)

Replacing a cartridge typically follows a straightforward path: identify and source the correct cartridge, shut off water supply, remove the handle and any trim, extract the old cartridge, inspect seals and the valve seat, insert the new cartridge with correct orientation, reassemble the faucet, and run water to test. Expect minor reassembly tweaks if water leaks or pressure is uneven. Keep a clean work area and take notes on parts you removed to aid future repairs.

Maintenance tips to extend cartridge life

Regular maintenance extends cartridge life and prevents leaks. Clean aerators and faucet inlets to reduce mineral buildup, wipe the cartridge area after repairs, and avoid harsh chemical cleaners that can degrade O-rings. When replacing, apply a minimal amount of plumber’s grease on O-rings to improve seating and prevent twisting during installation. Finally, consider regular inspections every 1-2 years, especially in hard-water homes, to catch wear before leaks appear.

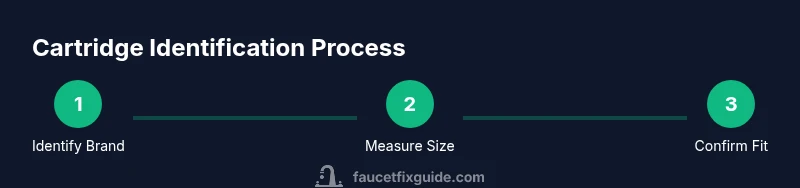

Quick reference checklist for homeowners

• Identify brand, model, and cartridge type.
• Photograph and measure diameter, height, and spline count.
• Confirm compatibility with your faucet’s specs.
• Gather tools and optional O-ring kit.
• Plan warranty implications and return policies.
• Replace with oriented cartridge; test for leaks before finishing.

Final note on choosing the right cartridge

Identifying the correct cartridge is about accuracy and alignment with the valve design. The right part ensures smooth operation, leak prevention, and consistent temperature control. If you feel uncertain at any point, consult the faucet manufacturer’s support line or a trusted DIY guide like Faucet Fix Guide for brand-specific guidance.
