Floor Mount Tub Filler Installation: A Complete DIY Guide
Learn how to select, prepare, and install a floor mount tub filler with our comprehensive, DIY-friendly guide. Tools, steps, tips, and maintenance for a secure, leak-free fit.
Goal: install a floor mount tub filler that reaches your freestanding tub with a clean, finished look. Key steps include choosing a compatible fill valve, prepping the floor opening, securing the mounting flange, connecting hot and cold supply lines, and testing for leaks. This approach suits modern bathrooms and DIY-friendly homes.
What is a floor mount tub filler and why it's popular
According to Faucet Fix Guide, a floor mount tub filler provides a clean, floor-level aesthetic and direct reach to a freestanding tub. It combines a dedicated fill valve with a tall, elegant spout that can be positioned for comfortable use, reducing splashes and keeping deck clutter to a minimum. For many homeowners, this setup offers a premium look without sacrificing practicality. The Faucet Fix Guide team notes that durable finishes, reliable valve hardware, and straightforward installation are the top reasons people choose floor mount tub fillers. When you see a floor-mounted unit, you’re often looking at a design that balances form and function: a fixture that anchors the bath area while delivering precise control over flow and temperature. If you’re upgrading from a deck-mounted or wall-mounted faucet, you’ll appreciate the unobtrusive footprint and easier cleaning around the tub area. In this section, we’ll explore how to evaluate models, measure reach, and plan for a solid installation that lasts years.
Planning your install: match compatibility and reach
Before you buy a floor mount tub filler, align the model with your tub’s specifications and your bathroom layout. Look for a filler valve compatible with your hot and cold water supply lines and confirm the base mounting depth matches the floor thickness. Consider the reach of the spout relative to the tub lip; too short and you’ll have to pull hoses, too long and it could interfere with nearby fixtures. Faucets labeled for floor mounting typically include a floor flange, escutcheon, and a valve assembly; some kits also provide the necessary supply lines. The Faucet Fix Guide analysis shows that homeowners who plan reach, clearance, and finish early in the process report smoother installations and fewer adjustments later on. Take measurements from the tub edge to the centerline of your supply lines, and verify that you can access shut-off valves in the cabinet or behind the wall if needed. If you’re dealing with concrete, tile, or stone, ensure the floor can support the mounting hardware without cracking.
Floor opening, rough-in, and floor prep
Creating the correct floor opening is the foundation of a leak-free installation. Start by marking the exact location where the filler valve will sit, then drill a pilot hole to guide the final hole saw. Use a masonry bit for concrete floors or a ceramic bit for tile-covered floors to avoid chipping. After cutting, clean the opening thoroughly and verify that you have a straight, clean edge for a tight seal. The valve body must be positioned vertically and centered over the opening so the escutcheon sits flush against the floor. If you’re installing into a suspended floor, consider using a reinforced flange or a backing material to prevent wobble and ensure long-term stability. Once the opening is prepared, dry-fit the flange and valve to confirm alignment before final assembly.
Valve types and connections
Floor mount tub fillers come in several valve configurations: single-handle, dual-handle, lever, and thermostatic variants. Your choice depends on personal preference, existing plumbing, and whether you want precise temperature control. Ensure the supply lines are compatible with your valve ports and use flexible stainless steel lines to minimize stress at connections. Apply Teflon tape or pipe thread sealant to threaded joints and tighten with appropriate wrenches to prevent leaks. If your kit includes shut-off valves, install them in accessible locations per local code. Proper alignment of the valve body with the floor flange is crucial for a clean finished look and reliable operation over time.
Mounting options, spout reach, and trim
Mounting a floor mount filler requires precise alignment of the spout, handle, and escutcheon with the tub edge. Many floor fillers offer adjustable escutcheon depth and a range of spout heights, which helps accommodate different tub styles. Secure the mounting flange to the floor with the supplied fasteners, checking for level and plumb as you go. When attaching the spout, verify the reach is sufficient to avoid bumping into the tub edge while filling. Finish with the escutcheon and sealant to prevent water intrusion under the trim. If you’re renovating a bathroom, consider coordinating with the tub and finish hardware to achieve a consistent look across fixtures.
Finishing touches and sealant: caulk, escutcheons, and aesthetics
Seal around the base and escutcheon with a high-quality silicone sealant to prevent water migration behind tiles or floor surfaces. Smooth the bead for a neat, professional appearance and wipe away excess sealant before it cures. Install any decorative trim or escutcheon plates that came with your kit, ensuring alignment and clearance with the tub edge. After assembly, perform a water test to confirm there are no drips from valve connections or around the floor opening. A well-sealed installation not only looks good but helps protect against future water damage and mold growth in the floor cavity.
Maintenance and common issues: longevity and reliability
To keep your floor mount tub filler performing well, inspect the valve handle and escutcheon for looseness periodically and tighten as needed. If you notice slow filling or temperature drift, check the cartridge or valve seals for wear and replace as recommended by the manufacturer. Corrosion-resistant finishes like brushed nickel, chrome, or matte black resist tarnish and corrosion with proper cleaning. If a leak occurs, re-seal threaded joints and re-tighten the mounting screws. Regular preventive maintenance keeps the fixture aesthetically pleasing and functionally reliable for years to come.
Safety and permits, and hiring pros if needed
Floor mount tub filler installation involves plumbing work and may require a permit depending on local codes. Always shut off water supply before starting and test for leaks in a controlled manner after installation. If you’re unsure about rough-in alignment, floor integrity, or plumbing compatibility, consider consulting a licensed plumber or a professional bathroom fitter to ensure safety and compliance. The Faucet Fix Guide team recommends weighing the cost and disruption of DIY against professional installation for guaranteed results and peace of mind.
Tools & Materials
- Floor-mount tub filler kit (valve, escutcheon, spout)(Choose a model compatible with your tub and mounting height)
- Floor flange set(Flanges appropriate for concrete or tile floors)
- Hot and cold supply lines(Flexible stainless steel lines recommended)
- Shut-off valves (if not included in kit)(Important for serviceability)
- Teflon tape and pipe dope(Seal threads; use plumber's tape on all threaded connections)
- Caulk or silicone sealant(Waterproof seal around escutcheon)
- Silicone caulking gun(For precise sealant application)
- Drill with masonry bit and hole saw(Required to create floor opening)
- Measuring tape, marker, level(For accurate placement)
- Adjustable wrench, channel locks(Key for tightening fittings)
- Safety gear (gloves, safety glasses)(Eye protection and hand safety)
- Wet/dry vacuum(Optional, for debris cleanup)

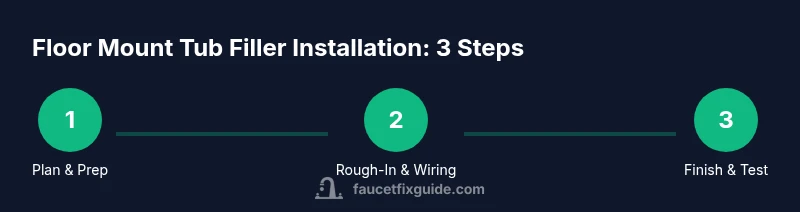

Steps
Estimated time: 2-5 hours
- 1
Plan placement and measurements
Mark the intended location for the floor mount filler and confirm the tub’s reach. Measure from the tub lip to centerline of the supply lines, and verify clearances with nearby fixtures. This ensures the spout aligns mid-tub and prevents interference.
Tip: Pro tip: double-check alignment with a mockup using painter’s tape before cutting. - 2
Prepare the floor opening
Cut the floor opening to fit the floor flange and valve assembly. Use the appropriate bit for your floor material and clean the edges to ensure a tight seal.
Tip: Pro tip: start with a pilot hole to guide the final hole saw and prevent wandering. - 3
Install rough-in valve and floor flange
Insert the valve body into the opening and secure the flange to the floor. Check for level and plumb; tighten fasteners evenly to avoid warping and leaks.
Tip: Pro tip: apply plumber’s putty or sealant where the flange meets the floor for extra stability. - 4
Run supply lines to the valve
Connect hot and cold supply lines to the valve using flexible lines where possible. Apply Teflon tape on threaded joints and avoid overtightening which can crack fittings.
Tip: Pro tip: pre-fasten lines to keep them from shifting during final assembly. - 5
Mount filler body and trim
Attach the filler body onto the floor flange, align the escutcheon, and secure the trim. Ensure the handle orientation suits the user’s preferred side and fill direction.
Tip: Pro tip: use a level to verify the filler sits perfectly vertical before tightening. - 6
Attach spout, seal, and test
Install the spout and ensure the seal around the base and escutcheon is watertight. Slowly turn on water and check all joints for leaks; tighten as needed.
Tip: Pro tip: run both hot and cold water for several minutes to cycle the valve and identify leaks early. - 7
Finish, test, and maintain
Apply silicone sealant around the base, install any decorative trim, and perform a full test of the equipment. Document maintenance steps for future reference.
Tip: Pro tip: keep an extra seal kit on hand for periodic replacement.
Frequently Asked Questions
What is a floor mount tub filler and where is it best used?
A floor mount tub filler is a freestanding faucet assembly installed through the floor next to a tub. It provides a tall, adjustable spout and dedicated valve control, ideal for freestanding tubs and modern bathrooms where wall or deck-mounted options aren’t feasible.
A floor mount tub filler is a freestanding faucet set installed in the floor next to a tub. It’s great for freestanding tubs and modern bathrooms.
Can I install a floor mount tub filler myself or should I hire a pro?
DIY installation is possible for confident homeowners with plumbing experience, especially for straightforward floor openings and valve connections. However, a licensed plumber can ensure code compliance, proper rough-in, and leak-free performance, particularly in complex floors or cement slabs.
DIY is possible if you’re comfortable with plumbing; otherwise, hire a pro to ensure code compliance and leak-free performance.
What tools are essential for installing a floor mount tub filler?
You’ll need a drill with the appropriate bit, hole saw for floor opening, wrenches, Teflon tape, sealant, measuring tools, and flexible supply lines. A level helps keep the assembly true, and safety gear protects against debris and splashes.
A drill, hole saw, wrenches, tape, sealant, measuring tools, and flexible supply lines are essential.
What maintenance does a floor mount tub filler require?
Regularly inspect for leaks at joints, clean the spout to prevent mineral buildup, replace worn cartridges or seals as recommended by the manufacturer, and reseal the base if you notice any moisture buildup.
Check for leaks periodically, clean mineral buildup, and replace worn parts as needed.
Do floor mount tub fillers work on all floor types?
Most floor mount fillers work with concrete, tile, or wood subfloors, but installation may require different flanges or backing for stability. In slab floors, you’ll likely use a masonry bit and a floor flange designed for concrete.
They work on most floors, but you may need different flanges or backing for stability.
How long does installation typically take?
A straightforward floor mount tub filler install typically takes a few hours for an experienced DIYer, and longer if you’re cutting through a dense floor or coordinating with tile work.
It usually takes a few hours for a straightforward job, longer if you’re cutting through dense flooring.
What features should I prioritize when choosing a filler?
Prioritize valve reliability, reach, and finish durability. If you want precise temperature control, choose a thermostatic model. Check warranty terms and ensure compatibility with your existing plumbing connections.
Prioritize reliability, reach, and finish; get thermostatic control if you want precise temperature and check the warranty.
Watch Video
Top Takeaways
- Plan fit and reach before cutting.
- Prepare precise floor opening to avoid leaks.
- Secure mounting with proper fasteners and level.
- Seal and test for leaks before finishing trim.
- Schedule proactive maintenance to extend life.
