Wall Mount Tub Filler with Hand Shower: Installation Guide
Learn how to install a wall mount tub filler with hand shower with clear, step-by-step instructions. Discover setup, compatibility, maintenance, and troubleshooting tips for a professional bath upgrade.
You will install a wall mount tub filler with hand shower by selecting a compatible rough-in valve, shutting off water, mounting the bracket, connecting hot and cold supply lines, and attaching the hand shower hose. This upgrade saves space and adds flexible bathing options. According to Faucet Fix Guide, begin with valve compatibility and plan clearances before purchasing a kit.
Why a wall mount tub filler with hand shower is a smart bath upgrade
A wall mount tub filler with hand shower combines a sleek, space-saving faucet with the convenience of a handheld spray. For homeowners pursuing a clean, modern bathroom, this setup minimizes deck clutter and simplifies routine tasks like cleaning the tub. The wall-mounted design also makes it easier to align with plumbing rough-ins and standard tub dimensions. According to Faucet Fix Guide, choosing a unit that matches your rough-in valve and your tub’s mounting surface will reduce installation complexity and future leaks. When you plan your upgrade, consider flow rates, spray head ergonomics, and the finish to ensure long-term satisfaction. The hand shower adds flexibility for rinsing, washing, and filling the tub, making daily routines more comfortable. Successful DIY installs hinge on precise measurements, correct valve compatibility, and secure mounting. This guide emphasizes a methodical approach to selecting components and verifying clearances before you drill any holes or tighten fittings. A well-chosen wall mount tub filler with hand shower should complement your bathroom’s style while delivering reliable performance for years to come.
Compatibility and planning: valves, rough-in, and clearances
Before buying, map out the plumbing layout and verify compatibility with your existing rough-in valve. Wall mounted systems rely on specific valve bodies and mounting brackets; using an incompatible component is the leading cause of leaks and misalignment. measure the distance between the wall surface and the tub edge, as well as the position of hot and cold inlets. If your tub is already deck-mounted, you may need a retrofit kit or alternate valve configuration. Faucet Fix Guide recommends documenting the rough-in dimensions and checking the product’s installation template to ensure the escutcheon will cover all penetrations cleanly. For most homes, you’ll see standard 1/2-inch or 3/4-inch supply lines, but confirm your local plumbing codes and your hardware’s spec sheet. The outcome hinges on selecting a unit whose valve core and handle will interact smoothly with your hot and cold supplies. If you’re unsure, consult manufacturer guidelines or a plumbing professional to avoid expensive mistakes.
Choosing components and layout: finishing touches that matter
The visual alignment of the filler with the tub, the height of the outlet, and the position of the hand shower are all critical for comfort and function. When selecting a wall mount tub filler with hand shower, verify the hose length, spray head reach, and the escutcheon design to match your wall depth and tile arrangement. Lay out the mounting bracket so that the spout aligns with the tub rim and the handheld spray hangs within easy reach. A common pitfall is mismatched finishes or incompatible sealants; always pick a finish that resists corrosion and a sealant that is compatible with your tile and tub materials. The Faucet Fix Guide Team highlights testing a mock-up on the wall before drilling to prevent misdrilled holes that could compromise structural integrity. The goal is a seamless installation that looks deliberate and performs reliably, with no visible gaps around the escutcheon or wall plate. This planning step saves time and reduces the need for rework later on.

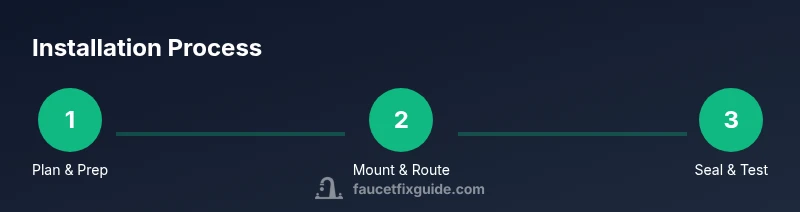

Installation overview and workload estimation
Installing a wall mount tub filler with hand shower involves structural mounting, valve integration, and line connections. Expect to drill through tile or plaster, anchor into studs, and seal around penetrations. The scope includes mounting hardware, rough-in valve placement, hot and cold supply connections, and routing the handheld hose. Make sure you have the proper tools and safety gear, and allocate time for a quality leak test. This section gives practical guidance on sequencing tasks so you don’t backtrack. Remember, a calm, methodical approach minimizes damage to walls and reduces the chance of leaks after the final test. The end result is a clean, functional fixture that enhances your bath’s usability and value.
Maintenance, care, and troubleshooting
Like any plumbing fixture, a wall mount tub filler with hand shower requires regular care to maintain performance. Periodically inspect for leaks around the escutcheon, bracket, and valve connections. Clean the spray head and hose to prevent mineral buildup, and inspect the hose for cracks or wear. If you notice reduced flow or a dripping spout, re-seal threaded connections and check the valve cartridge for proper seating. For persistent issues, consult the original installation instructions or reach out to the Faucet Fix Guide Team for troubleshooting steps. Regular maintenance protects the fixture’s finish and prolongs its lifespan, keeping your bath comfortable and efficient.
Tools & Materials
- Wall-mount tub filler with hand shower kit(Includes faucet body, hand shower, hose, escutcheon, and mounting hardware)
- Rough-in valve compatible with kit(Verify compatibility with tub depth and plumbing layout)
- Hot and cold supply lines (1/2 in or 3/4 in)(Match to valve and stops)
- Shut-off valves/angle stops(Upstream of the valve for easier service)
- Teflon tape or pipe joint compound(Seal threaded connections)
- Silicone sealant or plumber's putty(Seal around escutcheon and wall penetrations)
- Adjustable wrench and channel-lock pliers(Tighten fittings without marring surfaces)
- Measuring tape and pencil(Mark placements and clearances)
- Level(Ensure bracket and escutcheon are plumb)
- Bucket, towels, and rags(Catch water, keep area clean)
- Anti-splash guard or drain cover(Optional to protect tub during install)
Steps
Estimated time: 60-120 minutes
- 1
Shut off water supply
Locate the main shut-off or the local hot and cold stops and turn them off. Open a faucet to verify there is no pressure. This prevents water from spraying while you work.
Tip: Have a bucket ready to catch any residual water in the lines. - 2
Remove existing fixture
If you’re replacing an old filler, disconnect supply lines and remove the escutcheon. Take photos of connections for reference when reinstalling the new unit.
Tip: Label or color-code hot and cold lines to avoid cross-connection later. - 3
Mount the bracket or mounting plate
Find studs and mark the bracket location. Drill pilot holes and secure the mount with screws. Use a level to ensure the bracket sits plumb and aligned with the tub edge.
Tip: Dry-fit before final tightening to confirm alignment with the tub rim. - 4
Install rough-in valve and body
Install the rough-in valve following the kit’s template. Align hot and cold inlets with the supply lines and ensure the valve body sits flush against the wall.
Tip: Avoid overtightening nuts to prevent valve deformation. - 5
Connect hot and cold supply lines
Apply Teflon tape or joint compound to threads, then attach the supply lines to the valve outlets. Check for proper seating and clearance.
Tip: Leave a small amount of slack in hoses to allow for movement and service. - 6
Attach the tub filler body
Mount the faucet body to the wall bracket and tighten mounting screws. Check that the spout projects over the tub edge at a comfortable height.
Tip: Use a spirit level to verify horizontal alignment. - 7
Install hand shower hose and head
Connect the hose to the mixer outlet and route it toward the tub edge. Secure the hand shower head, ensuring the hose has a gentle bend without kinks.
Tip: Clamp the hose neatly to avoid snagging or snag hazards. - 8
Pressure test and finish
Turn the water back on and check all connections for leaks. Apply silicone around the escutcheon if needed and verify hot/cold control operates smoothly.
Tip: Run both hot and cold through several cycles to flush debris and confirm leak-free performance.
Frequently Asked Questions
Is a wall mount tub filler with hand shower easy for a DIY project?
Yes, with careful planning and the right kit, a motivated homeowner can install a wall mount tub filler with hand shower. Follow manufacturer instructions, confirm valve compatibility, and perform a thorough leak test before use.
Yes, it can be DIY-friendly with careful planning, correct valve compatibility, and a thorough leak test.
What valve types should I choose for compatibility?
Choose a valve recommended by the faucet kit and ensure the rough-in matches your tub layout. Check threading, inlet sizes, and compatibility with hot and cold supply lines.
Choose a compatible valve and verify rough-in size and threads before installation.
Do I need a plumber for this install?
If you have basic plumbing skills and a clear wall area, you can perform the install. Complex plumbing configurations or vaulted ceilings may require a licensed plumber.
If you’re comfortable with basic plumbing, you can DIY; otherwise, hire a pro.
How long does installation typically take?
Most DIY installations take about 60 to 120 minutes, depending on wall material, tile thickness, and valve compatibility. Allocate extra time for leak testing.
Typically about an hour to two, depending on setup.
How do I prevent leaks at threaded connections?
Apply plumber’s tape or pipe joint compound on threads and tighten securely, then retest after the system is pressurized. Avoid over-tightening to prevent damage.
Use tape or thread compound and test for leaks after pressurizing.
Can I install this on a tub with an existing deck plate?
Yes, but you may need a shallow escutcheon or a retrofit mounting kit. Ensure the wall thickness and tile layout allow a clean finish.
Yes, with the right retrofit kit and proper clearance.
Watch Video
Top Takeaways
- Plan compatibility before buying components.
- Mount level and aligned to tub rim for best aesthetics and function.
- Leak testing immediately after connection saves time and frustration.
